Note: This is still an experimental project. If you come across any trouble during the assembly, please contact us: support@tunerc.com

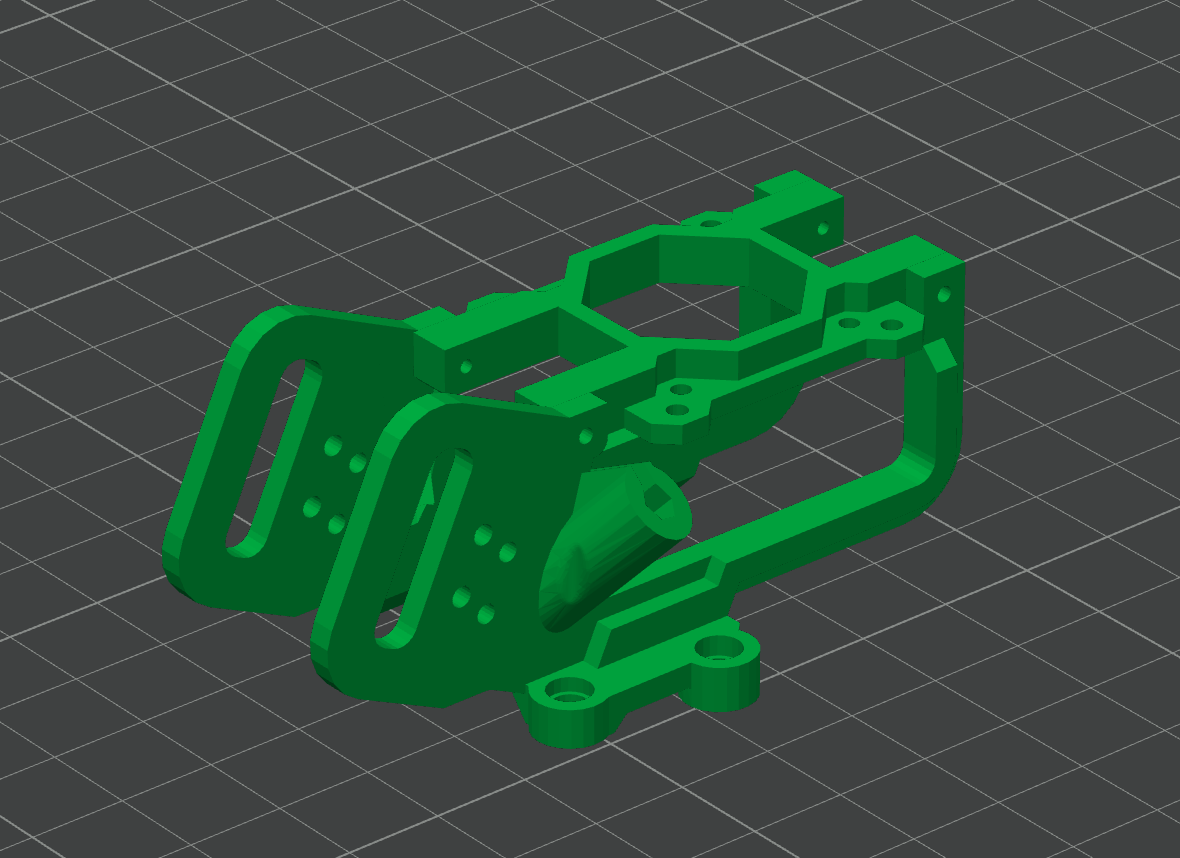

Attached file is the 3D printed Walksnail Moonlight Canopy for TUNERC 3.5inch frame
Please use PETG to print this canopy.
Recommended settings are as below.
Wall loops: 4-6
Top shell layers: 5
Bottom shell layers: 5
Sparse infill density: at least 35%
The assembly process is basically the same as DJI O4 Pro air unit.
Please check out the 3.5inch O4 Pro toothpick assembly diagram for assembly details.
The screws bag you need to prepare is as below.
You can also buy the screws bag from our website. The screws bag can also be used for DJI O4 pro canopy.
https://www.tunerc.com/product/screws-bag-for-dji-o4-pro-canopy/
6 x rubber grommets
4 x M1.6*6 self-tapping screws
4 x M2*4 cup head hexagon screws
3 x M2*8 cup head hexagon screws
3 x M2*6 aluminum standoffs
1 x M2*20 cup head hexagon screw
3 x M2 self locking nuts
2 x M2*15 cup head hexagon screws
1 x M2*12 cup head hexagon screw
